Toro® revolutionized the industry in 2015 with the groundbreaking Dingo TX 1000, the inaugural compact utility loader boasting a remarkable 1000 lbs. rated operating capacity. Fast forward to today, and Toro is ready to astonish once again as it unveils the game-changing Dingo TX 1000 TURBO. This turbocharged marvel not only builds upon the unmatched success and superior performance of its predecessor but also introduces a state-of-the-art Smart Power® feature, optimizing engine, auxiliary, and traction torque for an unparalleled compact utility loader experience.

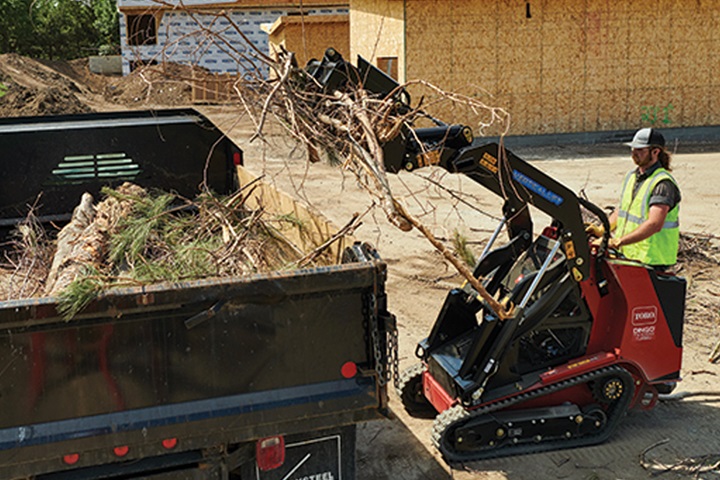

VERTICAL LIFT LOADER ARMS
Vertical lift arms with 81″ (206 cm) hinge pin height allows attachments to easily clear the side of 30-yard dumpsters or one-ton trucks.

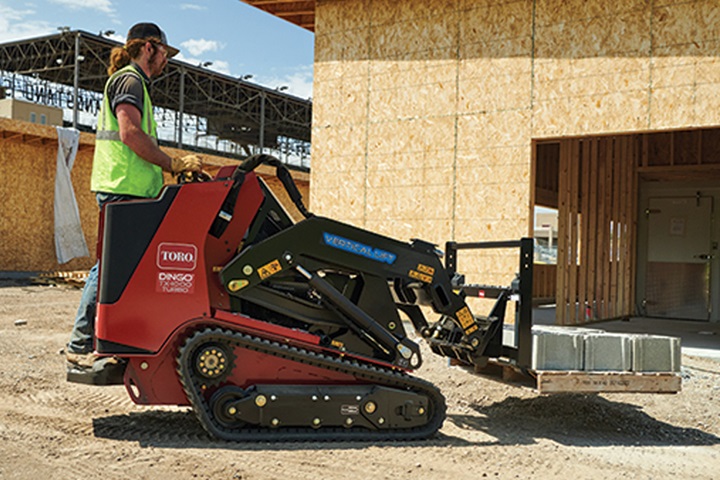

ENGINE
Powered by a 24.7 HP turbo Yanmar diesel engine to deliver a consistent and reliable user experience.

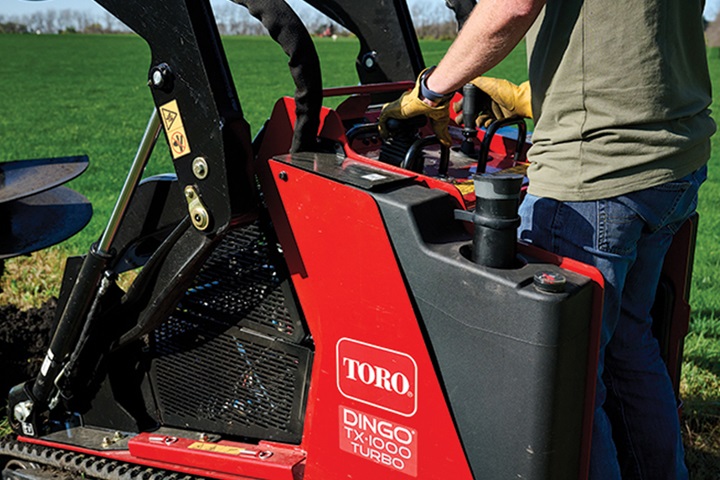

TRACTION CONTROL SYSTEM
Toro’s patented traction control system allows intuitive user operation for all skill levels now includes the integration of a digital display.

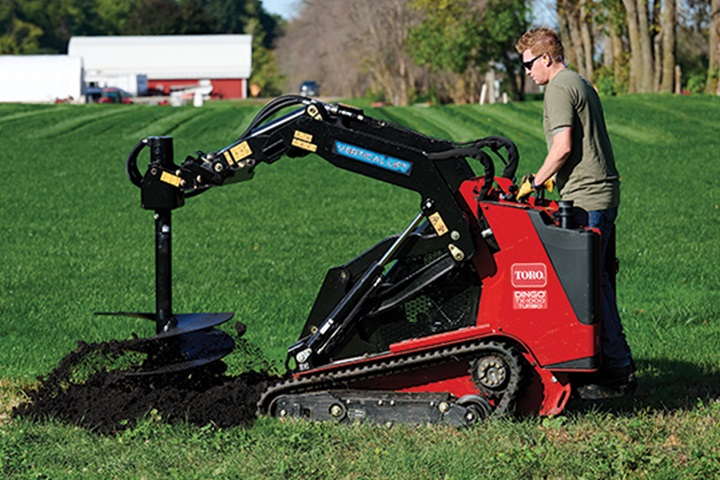

SMART POWER®
Smart Power allows the machine to run more efficient by automatically adjusting traction speed to maximize engine, auxiliary, and traction torque.

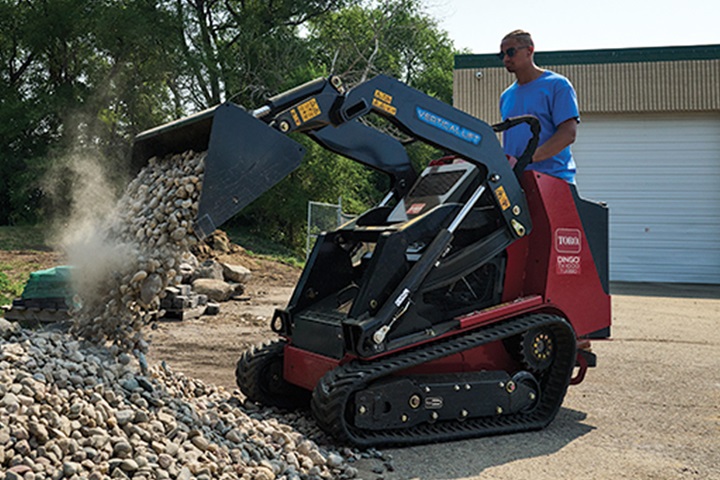

EASY OPERATION
The auxiliary foot pedal maintains hydraulic flow to the attachment, freeing the operator’s hands to focus on ground speed an attachment positioning.
Toro® revolutionized the industry in 2015 with the groundbreaking Dingo TX 1000, the inaugural compact utility loader boasting a remarkable 1000 lbs. rated operating capacity. Fast forward to today, and Toro is ready to astonish once again as it unveils the game-changing Dingo TX 1000 TURBO. This turbocharged marvel not only builds upon the unmatched success and superior performance of its predecessor but also introduces a state-of-the-art Smart Power® feature, optimizing engine, auxiliary, and traction torque for an unparalleled compact utility loader experience.
Save time and reduce labor costs with this ultimate work pair. Whether you’re regrading an overgrown front yard or prepping for a major landscaping project, the Toro Dingo and Toro Ultra Buggy are your go-to tools for getting the job done right, and fast!
| Dingo TX 1000 TURBO NARROW 22587 | Dingo TX 1000 TURBO WIDE 22588 | ||||
|---|---|---|---|---|---|
| ENGINE | Engine | 24.7 HP* (18.4 kW) Yanmar® 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant | 24.7 HP* (18.4 kW) Yanmar® 3TNV80FT Turbo Diesel Tier 4 & EU Stage 5 compliant | ||
| Air Filter | Remote: Primary and Safety Elements | Remote: Primary and Safety Elements | |||
| Cooling System | Combo crossflow radiator and oil cooler | Combo crossflow radiator and oil cooler | |||
| Fuel Tank | 10.25 gallons (38.8 liters) | 10.25 gallons (38.8 liters) | |||
| Oil Capacity | 3.8 quarts (3.6 liters) | 3.8 quarts (3.6 liters) | |||
| HYDRAULC SYSTEM | Hydraulic Pressure | 3,000 PSI | 3,000 PSI | ||
| Hydraulic Flow | Traction: 12.3 gpm (each pump) Auxiliary: High Flow 13.2 gpm, Low Flow 4.9 gpm |
Traction: 12.3 gpm (each pump) Auxiliary: High Flow 13.2 gpm, Low Flow 4.9 gpm |
|||
| Capacity | System 11.5 gallons (43.5 liters) Reservoir 8.6 gallons (32.5 liters) |
System 11.5 gallons (43.5 liters) Reservoir 8.6 gallons (32.5 liters) |
|||
| TRACKS | Standard | MERT track with “B” style tread | MERT track with Turf Friendly style tread | ||
| Traction | Dual hydrostatic pump | Dual hydrostatic pump | |||
| DIMENSIONS | Track Length & Width | 126.6 x 5.9″ (321.6 cm x 15.0 cm) |
126.6″ x 9.1″ (321.6 cm x 23.1 cm) |
||
| Wheelbase | 39″ (99.1 cm) | 39″ (99.1 cm) | |||
| Ground Clearance | 5.9″ (15.0 cm) | 5.9″ (15.0 cm) | |||
| Overall Dimensions (WxLxH) With Bucket | 42.2″ x 104.0″ x 54.6″ (107.2 x 264.2 x 138.7 cm) |
42.2″ x 104.0″ x 54.5″ (107.2 x 264.2 x 138.4 cm) |
|||
| Overall Dimensions (WxLxH) Without Bucket | 34.6″ x 83.0″ x 54.6″ (87.9 x 210.8 x 138.7 cm) |
39.9″ x 83.0″ x 54.5″ (101.3 x 210.8 x 138.4 cm) |
|||
| Maximum Operating Height | 106.2″ (269.7 cm) | 106.2″ (269.7 cm) | |||
| Hinge Pin Height | 81″ (205.7 cm) | 81″ (205.7 cm) | |||
| Dump Height | 60.3″ (153.2 cm) | 60.3″ (153.2 cm) | |||
| Dump Angle | 40-degrees | 40-degrees | |||
| Reach – Fully Raised | 23.3″ (59.2 cm) | 23.3″ (59.2 cm) | |||
| Ground Speed | 4.1 mph (6.6 km/h) | 4.1 mph (6.6 km/h) | |||
| Weight | 2,826 lbs (1,282 kg) | 2,911 lbs (1,320 kg) | |||
| Rated Operating Capacity* | 1,000 lbs (453.5 kg) | 1,000 lbs (453.5 kg) | |||
| Ground Pressure | 6.1 PSI | 4.1 PSI |
